Ice Tower Water Fountain Nozzles Directional Tower Cedar Foam Nozzle

Ask Lasest Price
Brand Name :	YICHENG
Model Number :	CBtT series
Certification :	CE
Price :	negotiation
Payment Terms :	Ex-worked
Supply Ability :	1, 000,000pcs/week
Delivery Time :	5-10 days

Add to Cart

Product Details
Company Profile

Ice Tower Water Fountain Nozzles Directional Tower Cedar Foam Nozzle

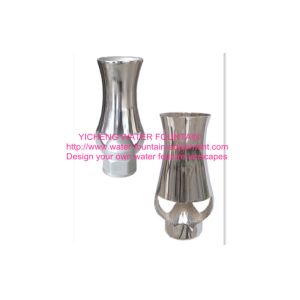

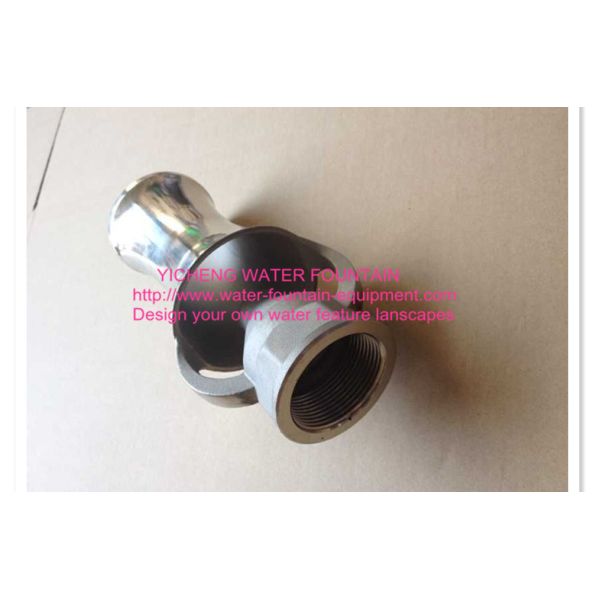

SS304 Material Ice Tower Water Fountain Nozzles / Directional Tower Cedar Foam Nozzle

Description:

The appearance of water column produced by Cedar Shape Spray Frost Tower Fountain Nozzle is huge, plump and strong. The nozzle is fixed under the water level, thus, it could take the water upwards when it works and make the water column thickset, anti-wind and splendid.

The Cedar Shape Spray Water Fountains Nozzle is widely used in garden, plaza and,public ponds, street, etc.

Specifications

Stainless Steel 304 Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
CBtT50	80-400	35-45	1-10	0.8-1.0	2"	internal thr.	Ф73 * Ф19 * 1		200	94	1.1
CBtT40	50-300	20-35	1-8	0.5-0.6	1 1/2"		Ф63 * Ф19 * 1		185	95	0.9
CBtT25	40-200	8-12	1-5	0.2-0.3	1"		Ф46 * Ф12 * 1		135	61	0.4
CBtT20	40-100	3-5	1-3	0.2	3/4"	external thr.	Ф30 * Ф10 * 1		90	44	0.15
CBtT15	40-100	2-4	1-3	0.15	1/2"	external thr.	Ф25 * Ф8 * 1		71	33	0.1

Brass Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
CBtT80	80-450	55-65	1-12	1-1.5	3"	external thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT65	80-450	55-65	1-12	1-1.5	2 1/2"	internal thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT50	80-400	35-45	1-10	0.8-1.0	2"		Ф73 * Ф19 * 1		200	94	1.1
CBtT40	50-300	20-35	1-8	0.5-0.6	1 1/2"		Ф66 * Ф16 * 1		180	86	0.75
CBtT25	40-200	8-12	1-5	0.2-0.3	1"		Ф46 * Ф12 * 1		123	60	0.35
CBtT20	40-100	3-5	1-3	0.2	3/4"	external thr.	Ф30 * Ф10 * 1		89	44	0.13
CBtT15	40-100	2-4	1-3	0.15	1/2"	internal thr.	Ф25 * Ф8 * 1		71	33	0.07
