Flange Connect Submersible Fountain Pumps Iron Casting 380v And 220v Three Phase

Ask Lasest Price
Brand Name :	YICHENG
Model Number :	QS series
Certification :	CE
Price :	negotiation
Payment Terms :	T/T, western union, L/C, Ex-worked
Supply Ability :	1000000pcs/month
Delivery Time :	within one week

Add to Cart

Product Details
Company Profile

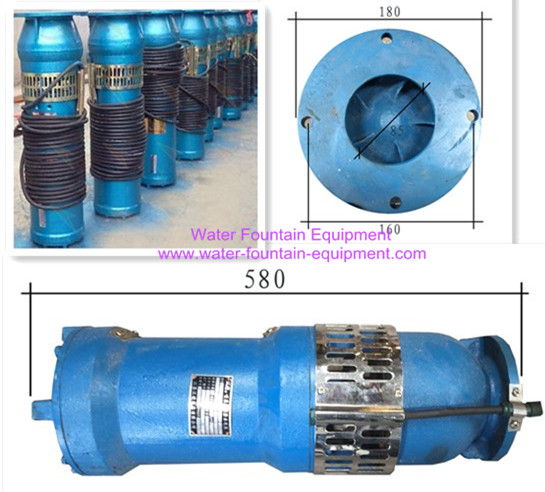

Flange Connect Submersible Fountain Pumps Iron Casting 380v And 220v Three Phase

Flange Connect Submersible Fountain Pumps Iron Casting 380v And 220v Three Phase

Description:

1. diving type

2. three-phase asynchronous electric

3. electric power irrigation and drainage machinery

4. with small volume, light weight, mobile convenience, easy installation and don't need to water before driving, etc.

Widely used in agricultural irrigation, industrial water supply and drainage, municipal construction and fountain, engineering and other industries.

Connection would be flange type, you can ask us to offer the flange or buy yourself.

Features:

1. Motor: F class insulation

2. Bearing: NSK brand

3. O rings and cable: silastic

Working conditions:

1. Power Supply: 380V/50Hz, 3 Phases

2. Medium: on Corrosive clean water with Temperature less than +30°C, the practical ratio less than 0.01%; diameter less than 0.2 mm; PH 6.5~8.5

3. Pump shall be submerged totally in water, under liquid length from 0.5m to 5m.

Model	Flow	Head	Power	Output	Rotate	Max radial	Weight	Flange Size
	Rate			size	Speed	size x height		outer size	inner size	certre distance	qty of bolt hole & size
	(m3/h)	(m)	(KW)	(mm)	(rpm)	(mm)	(kg)	(mm)	(mm)	(mm)	(pcs) (mm)
QS65-7-2.2	65	7	2.2	100	2860	160 x 647	45	170	100	150	4 - Φ11
QS25-17-2.2	25	17	2.2	52	2860	160 x 641	45	156	50	135	4 - Φ11
QS100-6-3	100	6	3	125	2860	174 x 742	48	174	125	155	4 - Φ11
QS65-10-3	65	10	3	95	2860	160 x 687	45	170	90	150	4 - Φ11
QS20-30/2-3	20	30	3	60	2860	160 x 795	50	156	50	135	4 - Φ11
QS100-9-4	100	9	4	90	2860	210 x 651	60	183	90	165	4 - Φ11
QS40-20-4	40	20	4	70	2860	210 x 656	70	180	80	160	4 - Φ11
QS25-32-4	25	32	4	70	2860	210 x 643	73	150	80	130	4 - Φ11
QS65-13-4	65	13	4	70	2860	210 x 670	60	180	90	160	4 - Φ11
QS20-37-4	20	37	4	52	2860	184 x 895	60	135	56	108	4 - Φ11
QS40-25-5.5	40	25	5.5	70	2860	210 x 705	72	180	75	160	4 - Φ11
QS32-30/2-5.5	32	30	5.5	76	2860	184 x 852	75	162	78	145	4 - Φ11
QS250-5-5.5	250	5	5.5	140	2860	210 x 727	70	210	140	190	4 - Φ11
QS100-12-5.5	100	12	5.5	90	2860	210 x 710	75	180	90	160	4 - Φ11
QS100-10-5.5	100	10	5.5	90	2860	210 x 651	76	183	90	165	6 - Φ11
QS30-36/2-5.5	30	36	5.5	60	2860	184 x 840	75	165	63	134	4 - Φ11
QS40-28-5.5	40	28	5.5	70	2860	210 x 705	75	180	75	160	4 - Φ11
QS65-18-5.5	65	18	5.5	90	2860	210 x 685	75	180	90	165	4 - Φ9
QS160-8-5.5	160	8	5.5	115	2860	210 x 747	75	210	125	190	4 - Φ11
QS20-50/4-5.5	20	50	5.5	52	2860	184 x 990	80	135	56	108	4 - Φ11
QS80-12-5.5	80	12	5.5	88	2860	184 x 766	70	166	85	145	4 - Φ11
QS50-24/2-5.5	50	24	5.5	88	2860	184 x 892	80	80	166	84	4 - Φ11
QS100-13-5.5	100	13	5.5	90	2860	210 x 710	75	75	180	90	4 - Φ11
QS20-75/5-7.5	20	75	7.5	52	2860	184 x 1078	98	98	135	56	4 - Φ11
QS50-36/3-7.5	50	36	7.5	88	2860	184 x 1060	90	90	166	84	4 - Φ11
QS40-40/2-7.5	40	40	7.5	65	2860	184 x 907	75	75	150	65	4 - Φ11
QS80-22/2-7.5	80	22	7.5	88	2860	184 x 963	90	90	166	85	4 - Φ11
QS80-20-7.5	80	20	7.5	85	2860	210 x 707	82	82	184	86	4 - Φ11
QS100-15-7.5	100	15	7.5	90	2860	210 x 725	75	75	180	90	4 - Φ11
QS32-45/3-7.5	32	45	7.5	76	2860	184 x 1000	90	90	162	78	4 - Φ11
QS25-56/2-7.5	25	56	7.5	65	2860	184 x 878	80	80	150	66	4 - Φ11
QS65-25-7.5	65	25	7.5	75	2860	210 x 739	75	75	180	75	4 - Φ11
QS12.5-100/5-7.5	12.5	100	7.5	52	2860	252 x 1045	99	99	35	56	4 - Φ11
