    Ductile Iron Flanged Check Valve IP68 Silent Type For Drainage Pipeline

    Ask Lasest Price
    Brand Name : YICHENG
    Certification : CE
    Model Number : 2" - 16"
    Price : negotiation
    Delivery Time : within one week
    Payment Terms : T/T, western union, L/C
    Supply Ability : 1000000pcs/month
    • Product Details
    • Company Profile

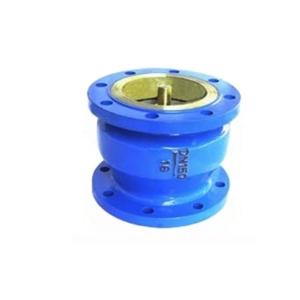

    Ductile Iron Flanged Check Valve IP68 Silent Type For Drainage Pipeline

    Ductile Iron Flanged Check Valve IP68 Silent Type For Drainage Pipeline


    Description:


    Silent lift check valve is suitable for water supply and drainage pipeline. It has small volume, light weight, small resistance, long service life etc.


    Material List:


    PosPartMaterial
    1GuideDuctile Iron GGG40
    2BodyCast lron GG25
    3GUIDING STEMBrass Cuzn40Pb2
    4SpringStainless steel
    5SealNBR,EPDM,VITON
    6DiscDuctile Iron GGG40

    Application:


    PN Nominal pressure1.6Mba
    Sealing test pressure1.76Mba
    Strength test pressure2.4Mba
    Suitable temperature

    EPDM:-10—+120°C

    NBR:-10—+80°C

    VITON:-23—+150°C

    SILICON:-50—+200°C


    Dimension Detail:


    sizeACvWeight(Lbs)
    2"51/45018.0
    2 1/2"51/214024.0
    3"618028.0
    4"71/433043.0
    5"81/253555.0
    6"93/474571.5
    8"121/21310123.0
    10"151/22160183.0
    12"141/43000306.0
    14"153/44200381.0
    16"171/26500501.0

    FLow Coefficient:


    The flow coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psig. To obtain the Cv factor for a given size check valve refer to table left.


    Notes:


    1. Design subject to change without notice.

    2. Contact us for certified prints ( exact dimension) when requeire.

    3. Flange dimensions are suitable for ANSI std. BS std. and DIN std.
